Wholesale Pigment Dispersing Machine High Speed Disperser Paint Dyes Mixer Agitator
Other recommendations
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview
Video Description
Product Description

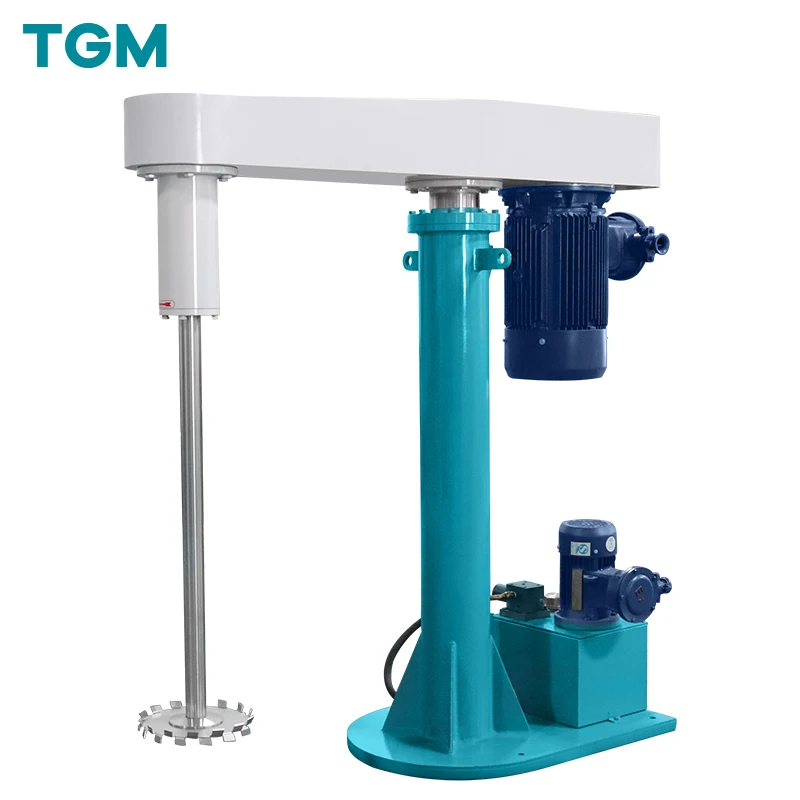

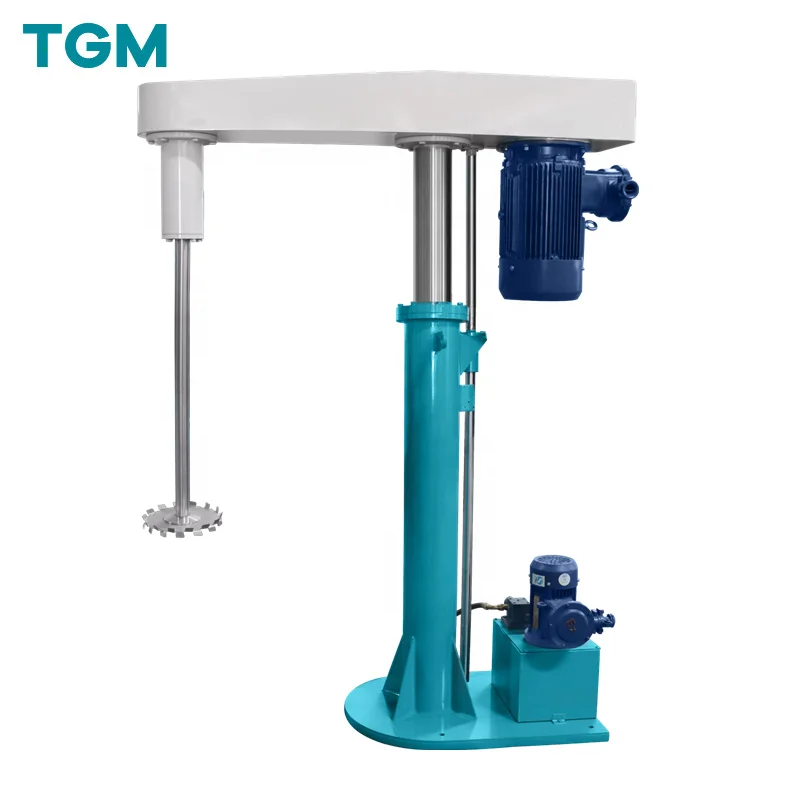

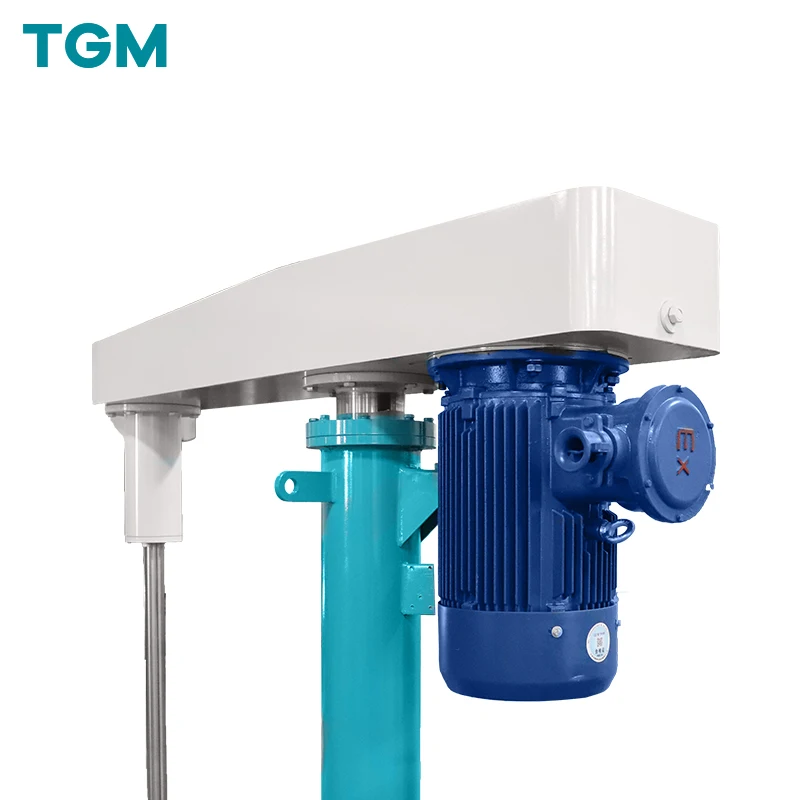

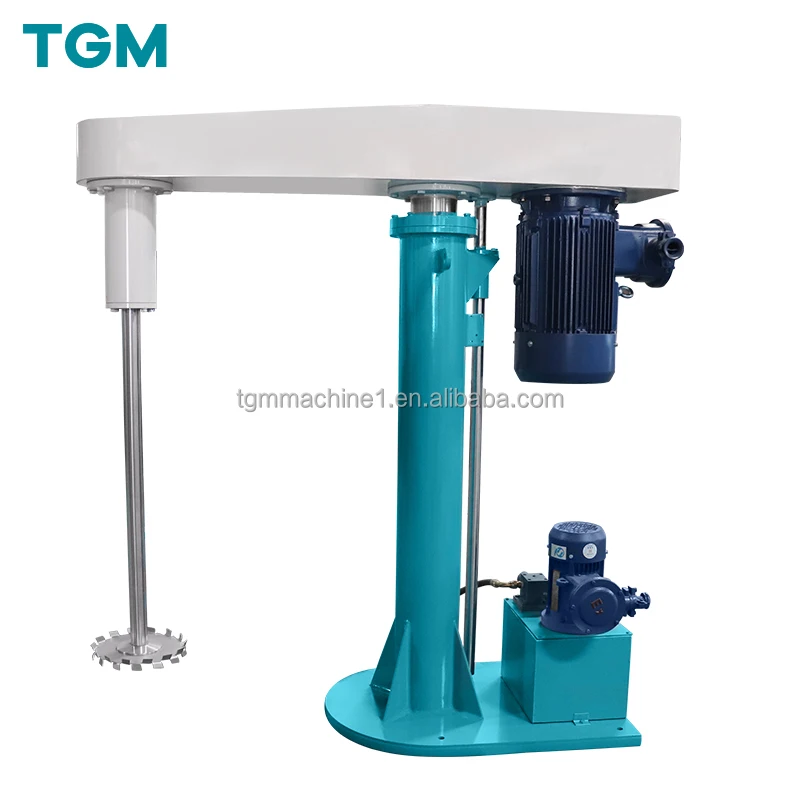

High Speed Disperser
TGM High Speed Disperser is built with all of the features and versatility required to produce a wide variety of products. This age old design has been refined and updated for longer life, improved performance and reduced maintenance costs.
High Speed Dispersers are perfect for viscous dispersions. High Speed Dispersers are most often used for chemical, paint, ink and specialty coatings applications. When used in conjunction with Multi-Shaft Mixers, they can be used for products up to several hundred thousand centipoise.
Dispersers are available from bench top sizes to very large production sizes capable of dispersing several thousand gallons at a time.
High Speed Dispersers are perfect for viscous dispersions. High Speed Dispersers are most often used for chemical, paint, ink and specialty coatings applications. When used in conjunction with Multi-Shaft Mixers, they can be used for products up to several hundred thousand centipoise.
Dispersers are available from bench top sizes to very large production sizes capable of dispersing several thousand gallons at a time.
Features
1. Rapid dispersion of solids, powders, prills and pigments
2. Consistent, repeatable particle size and distribution
3. Easy clean, hygienic construction

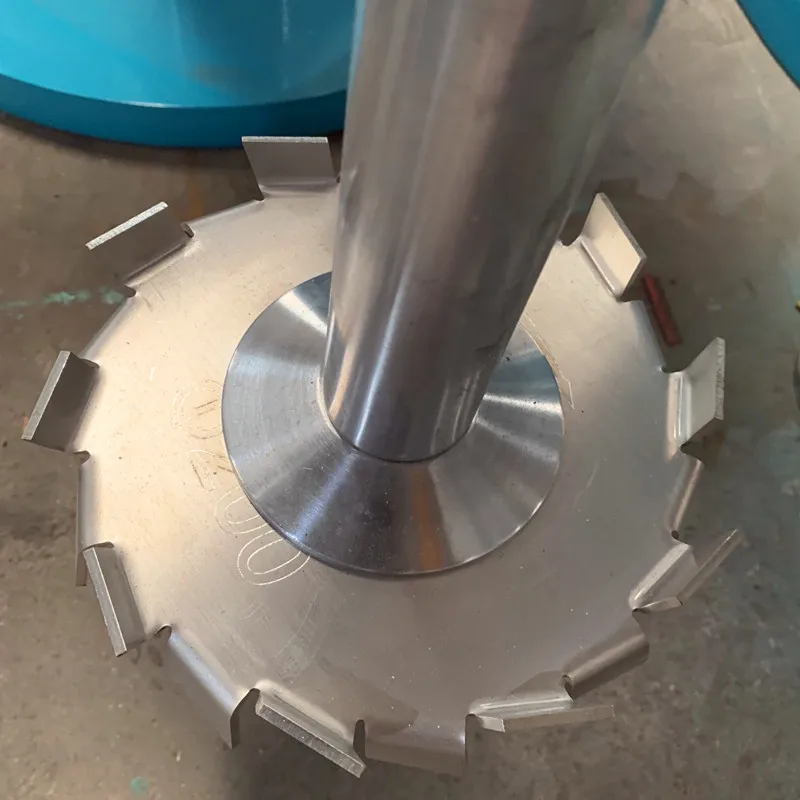

4. Extensive optional blade profiles
5. Low wear, low maintenance
6. Scalable from laboratory to bulk production,
delivering consistent results regardless of batch size
7. CE compliant safety system
8. De-aeration options
9. Abrasive and corrosive resistant options
10. High pressure & vacuum shaft sealing options
Specification
Type | FL1.5/FL2.2 | FL4 | FL5.5/FL7.5/FL11 | FL22/FL30 | FL37/FL45 |
Motor power(kw) | 1.5/2.2 | 4 | 5.5/7.5/11 | 22/30 | 37/45 |
Speed(r/min) | 0-1450 | 0-1450 | 0-1450 | 0-1450 | 0-1450 |
Diameter(mm) | 150 | 200 | 250 | 350 | 400-450 |
Lift(mm) | 800 | 800 | 900 | 1200 | 1200-1500 |
Pump power(kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 |
Capacity | 50-100 | 100-200 | 200-500 | 600-1000 | 1000-1500 |
Weight(kg) | 480 | 630 | 750 | 1250 | 1350 |
Overall diameter(mm) | 1100*350*1110 | 1350*550*1500 | 1800*650*1820 | 2100*1000*2100 | 2100*1000*2100 |

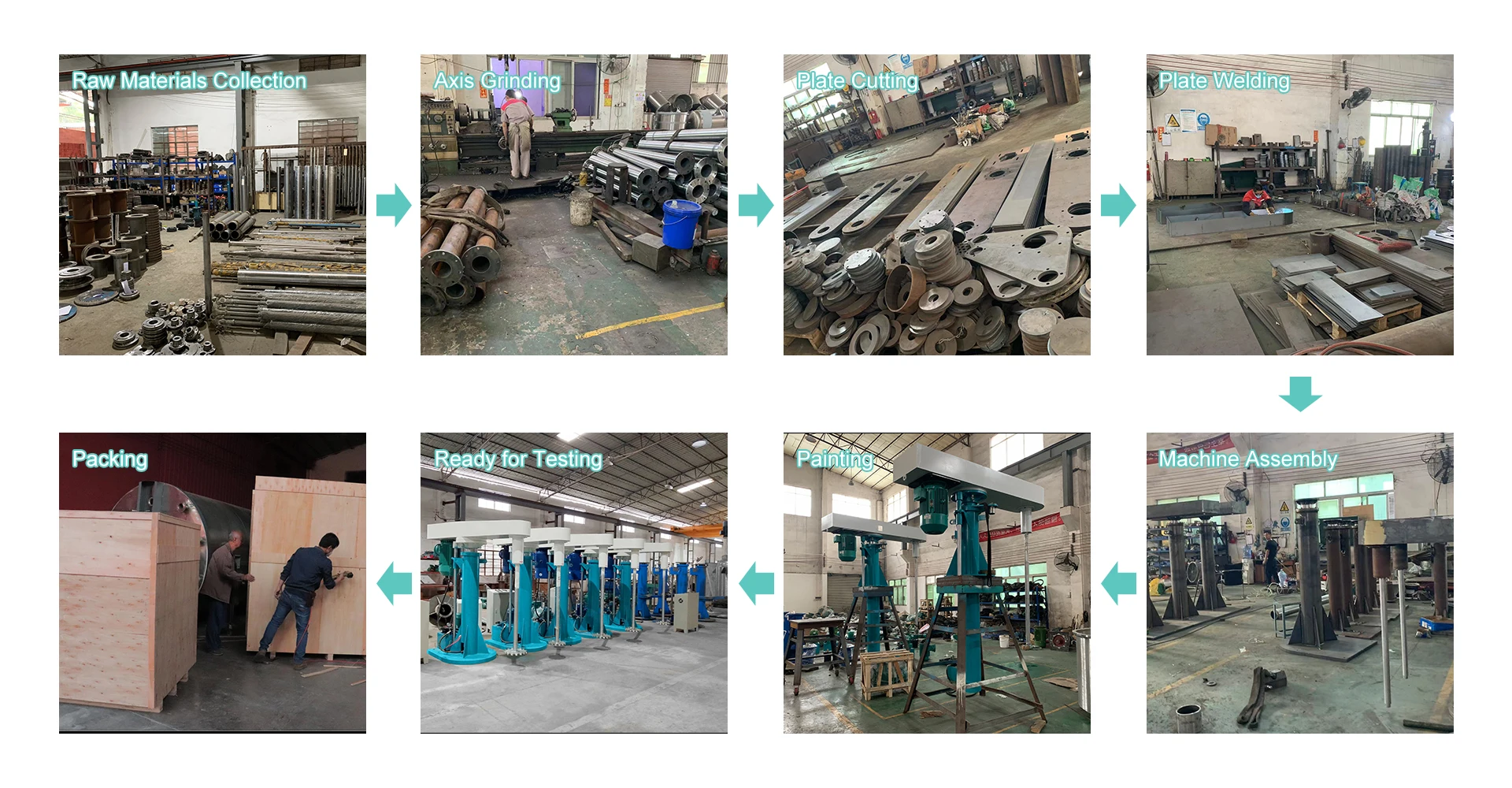

Production process
Project Cases
Company Profile
Our machines help to make paints, coatings, inks, pigments, dyes, glues, adhesives, spin finish,wood glue, glue for paper conversion, viscous pastes,concrete Admixtures, PCVC solvent cement, resins, sealants, silicone sealant, putty, lithium battery, electronic slurry&paste, pulps, liquid rubber, pesticide, liquid fertilizer, disinfectant, liquid detergent, lotions, shampoo, body wash, liquid soap, hand sanitizer, nail polish, gel, creams, and other chemical and cosmetics products.
Packing & Delivery
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(85.00%),Southeast Asia(5.00%),Africa(4.00%),Mid East(3.00%),North America(1.00%),South America(0.50%),Western Europe(0.50%),Central America(0.50%),South Asia(0.50%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
In strict accordance with the requirements of the contract, provide products that meet customers' standards and are of qualified quality. Strictly check and control the quality of raw materials, original components and accessories. Ensure that the processing technology of the equipment provided is complete, the testing methods are complete, and the products will never leave the factory with defects. The warranty period is one year. During the warranty period, our company is responsible for free replacement of damaged parts due to the quality of the product itself; if there are quality problems caused by the user, our company only charges the cost of the parts and provides remote guidance. Provide lifelong free training services for products.
3.What can you buy from us?
Disperser, Bead Mill, Basket Mill, Mixer,
emulsifier, Mixing kettles, Reactor, Filling machine, Bag filter, Pumps, Zirconium Bead, 3 roll mill, and other accessories.
4. Why should you buy from us not from other suppliers?
For the long term use of chemical machinery, we have established our own professional R&D, sales and after-sales teams. Higher efficiency, reducing emissions and save energy. Electrification of chemical and cosmetic machinery. Focusing on the research and production of chemical equipment, with years of experience, we have become one of the most influential chemical equipment manufacturers in the industry.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Cantonese
We are based in Guangdong, China, start from 2012,sell to Domestic Market(85.00%),Southeast Asia(5.00%),Africa(4.00%),Mid East(3.00%),North America(1.00%),South America(0.50%),Western Europe(0.50%),Central America(0.50%),South Asia(0.50%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
In strict accordance with the requirements of the contract, provide products that meet customers' standards and are of qualified quality. Strictly check and control the quality of raw materials, original components and accessories. Ensure that the processing technology of the equipment provided is complete, the testing methods are complete, and the products will never leave the factory with defects. The warranty period is one year. During the warranty period, our company is responsible for free replacement of damaged parts due to the quality of the product itself; if there are quality problems caused by the user, our company only charges the cost of the parts and provides remote guidance. Provide lifelong free training services for products.
3.What can you buy from us?
Disperser, Bead Mill, Basket Mill, Mixer,
emulsifier, Mixing kettles, Reactor, Filling machine, Bag filter, Pumps, Zirconium Bead, 3 roll mill, and other accessories.
4. Why should you buy from us not from other suppliers?
For the long term use of chemical machinery, we have established our own professional R&D, sales and after-sales teams. Higher efficiency, reducing emissions and save energy. Electrification of chemical and cosmetic machinery. Focusing on the research and production of chemical equipment, with years of experience, we have become one of the most influential chemical equipment manufacturers in the industry.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese,Cantonese
