Large Flow Horizontal Bead Sand Mill Paint Grinding Machine for Digital Printing/Solvent/Water-Based Ink
Other recommendations
Key attributes
Industry-specific attributes
output (kg/h)
10 - 5000 kg/h
feeding size (mm)
0.4 - 2 mm
output size (mesh)
0.4 - 2 mesh
Other attributes
application
Chemicals Processing, paint
type
Sand Mill
weight (kg)
500 KG
warranty
1 Year
material
SUS304, SUS304L, SUS316, SUS316L
product type
Paint
place of origin
Guangdong, China
brand name
TGM
dimension(l*w*h)
customized
key selling points
Easy to Operate
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Pump, motor
Product name
CDS LARGE FLOW GRINDING MILL
voltage
380V/customized
capacity
capacity
motor
Explosion-proof Motor
cabinet
Explosion-proof
Function
Grinding Material
Suitable for
paint ink coating
Advantage
High Effieciency
Machine Type
Electric Grinder Mill
Packaging and delivery
Selling Units:
Single item
Certifications
CE
Overview
●The newfull—volume Dynamic—Centrifugal—Cartridge—System offers optimized energy saving wet milling technology by con—sequent combination of a multitude of newly developed and ideally matching functional elements.High efficiency grinding discs with a large—surface slotted sieve to get the better beads distributed in the mill chamber.Enhanced flow rate capability by centrifugal implement screen.Operationally safe separation of grinding beads even with particularly high flow rates due to the highly efficient separator system

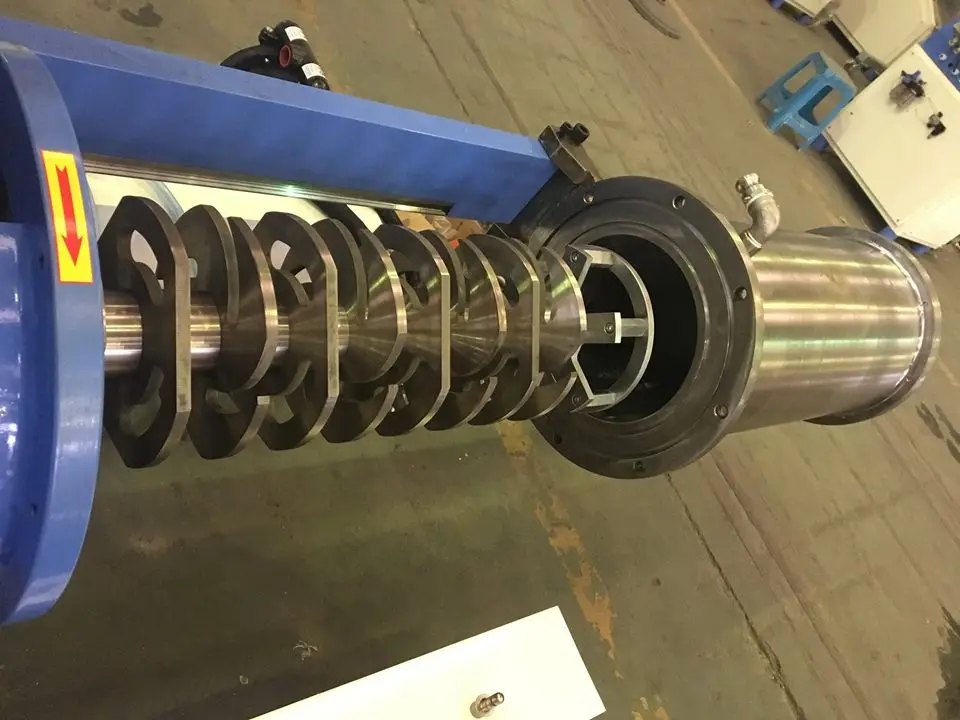

●Consisting of
1.Deflector cage with integrate grinding disc；
2.Large—surface slotted sieve.
Disk Bead Mill Advantage
●Closing gap between high enery density mills and convention mills;
●Usually singal pass process;
●Unique media retention device;
●Unique cleaning feature of large surface screen;
●Advantageous grinding of abrasive products such as marine pains, antifouling, heavy duty protective coatings;
●Dispersing grinding of bulk paint (PRIMER, FILLER);
●Enhanced flow rate capability by centrifugal implement screen;
●Easy to exchange product contact parts.
|
Type
|
CDS-2
|
CDS-5
|
CDS-10
|
CDS-20/30
|
CDS-50/60
|
CDS-100
|
CDS-200
|
||||||
|
Main motor power(KW)
|
4/5.5
|
7.5/11
|
15/22
|
22/30
|
30/37
|
75/90
|
90/132
|
||||||
|
Speed(r/min)
|
0~1450
|
||||||||||||
|
Vessel capacity(L)
|
2
|
5
|
10
|
20/30
|
50/60
|
100
|
200
|
||||||
|
Maximun flow rate(L/h)
|
20-50
|
50-100
|
100-250
|
250-500
|
500-1000
|
1000-2500
|
1500-3000
|
||||||
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate,design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.
Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery , electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent, lotions, shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province,China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete plant planning.
5) Our factory has ISO9001, CE, and other certificates.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Which countries your machine sold to?
-American Market: America, Canada, Mexico, Brazil; -European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia; -African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar; -Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, India, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
5.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
6.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
7.What's the payment method?
-We accept T/T and L/C payment.
